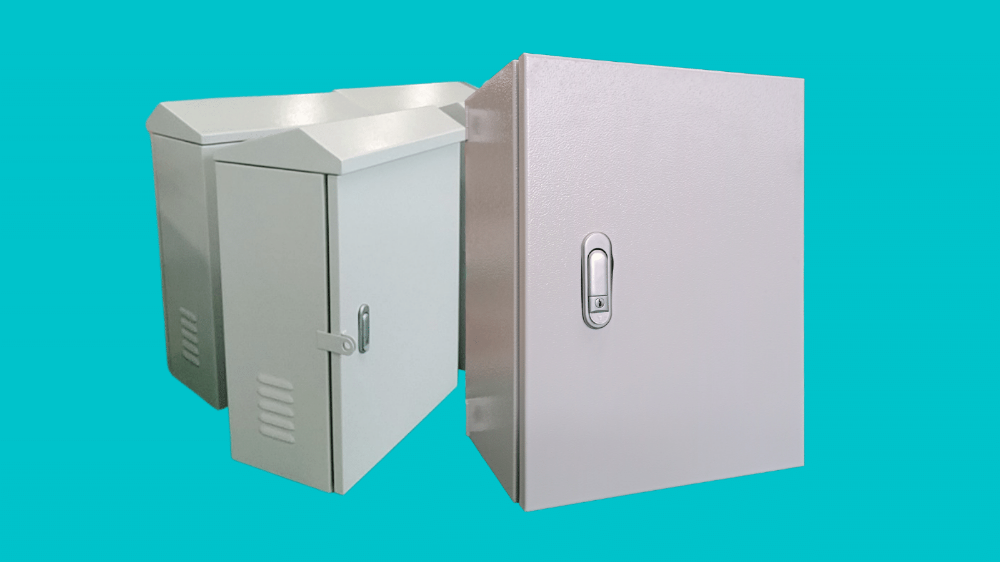

Vỏ tủ loại nhỏ MEC

 The series of MEC enclosures is a complete offer of monobloc enclosures for assembling small and medium-sized electrical automation panels, control panels, and switchboards. The typical use of MECA Enclosures is to assemble control panels for a broad variety of industrial machines: from large machinery with automated production lines or parts of these, down to the typical installations of on-board machine switchboards, boilers, heating plants and so on. The MECD Enclosures can be used for assembling the secondary distribution boards inside cabinets with 400, 600, and 800 mm widths. They are built so that a wide range of apparatus and modular circuit-breakers can be installed on DIN rails combined with special pre-drilled and hinged modular front panels, making ease in constructing distribution switchboards thanks to the availability of a series of accessories (modular panels, DIN rails).

Main characteristics

- Standard:                                In compliance with the Standard IEC 61439-1-2.

- Rated service voltage U_e:       up to 1000V.

- Rated insulation voltage U_i:    up to 1000V.

- Rated frequency:                    50-60 Hz.

- Segregation Form:                  up to form 2b.

- IP protection class:                  IP30, IP31, IP40, IP41, IP43, IP54, IP65.

- Material:                                   Mild Steel; Galvanized Steel; Ecogal; Stainless Steel.

- Finish:                                      Standard color RAL 7035, other colors available on request.

- Overall dimensions:

• Height (mm):                             300, 400, 500, 600, 700, 800, 1000, 1200.
• Width (mm):                              200, 300, 400, 600, 800, 1000.
• Depth (mm):                             150, 210, 250, 300.
