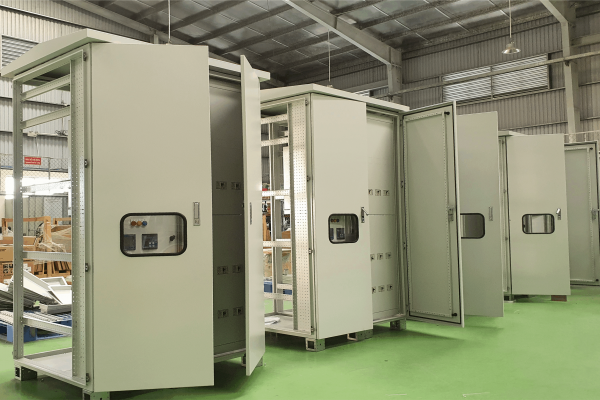

Modular enclosures MEI

MEE provides electrical cabinets for automation and distribution with the MEI series. MEI is a modular cabinet with IP protection up to IP65 that can be installed indoors and outdoors. The MEI panel boards are suitable for making switchboards, electrical automation, control, and operation panel boards, allowing for the possibility of constructing cabinets side-by-side to control complex industrial plants. They are suitable for interconnection with lateral and rear access and adjustment of the backplate position.

Main characteristics

- Standard:   Conformity with the Standard IEC 61439-1-2.

- Rated service voltage Ue:   up to 1000V AC - 1500V DC.

- Rated insulation voltage Ui:   up to 1000V AC - 1500V DC.

- Rated impulse withstand voltage Uimp:  12kV.

- Rated current In:  up to 6300A.

- Rated short-time withstand current Icw:  up to 120kA.

- Rated frequency:  50-60 Hz.

- Segregation Form:  up to form 4b.

- IP protection class:  IP30, IP31, IP40, IP41, IP43, IP55, IP65.

- Material:  Mild Steel; Galvanized Steel; Ecogal; Aluminum; Stainless Steel.

- Finish:  Standard color RAL 7035, other colors available on request.

- Overall dimensions:

  • Height (mm):  1400, 1600, 1700, 1800, 1900, 2000, 2100, 2200.
  • Width (mm):  400, 500, 600, 700, 800, 900, 1000.
  • Depth (mm):  400, 500, 600, 700, 800, 900, 1000.
