Pro E Power (ABB)

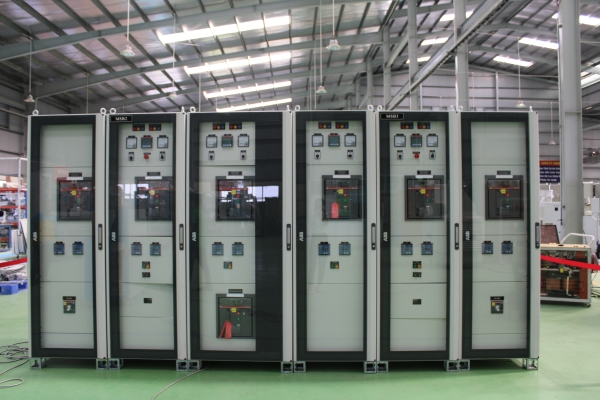

Licensed products from ABB. Type-test Main distribution switchboards up to 6300A. System pro E Power, ABB's pioneering new IEC type-test solution for main distribution switchboards with a rated current up to 6300A and a rated short-circuit current up to 150kA, meeting all plant's requirements depending on the type of installation, required degree of protection, and electrical and mechanical specifications.

Main characteristics

- Standard:   In compliance with the Standard IEC 61439-1-2.

- Vibration test:  In compliance with the Standard IEC 60068-2-57.

- Seismic withstand capability test:  In compliance with the Standard IEE Std 693.

- Rated service voltage Ue:   up to 1000V AC - 1500V DC.

- Rated insulation voltage Ui:   up to 1000V AC - 1500V DC.

- Rated impulse withstand voltage Uimp:  12kV.

- Rated current In:  up to 6300A.

- Rated short-time withstands current Icw:  up to 150kA.

- Rated peak short-circuit current Ipk:  up to 330kA.

- Rated frequency:  50-60 Hz.

- Segregation Form:  up to form 4b.

- IP protection class:  IP30, IP31, IP40, IP41, IP65.

- Functional dimensions:

  • Height (mm):  1800, 2000.
  • Width (mm):  300, 400, 600, 800, 1000, 1250.
  • Depth (mm):  200, 300, 500, 700, 900.
