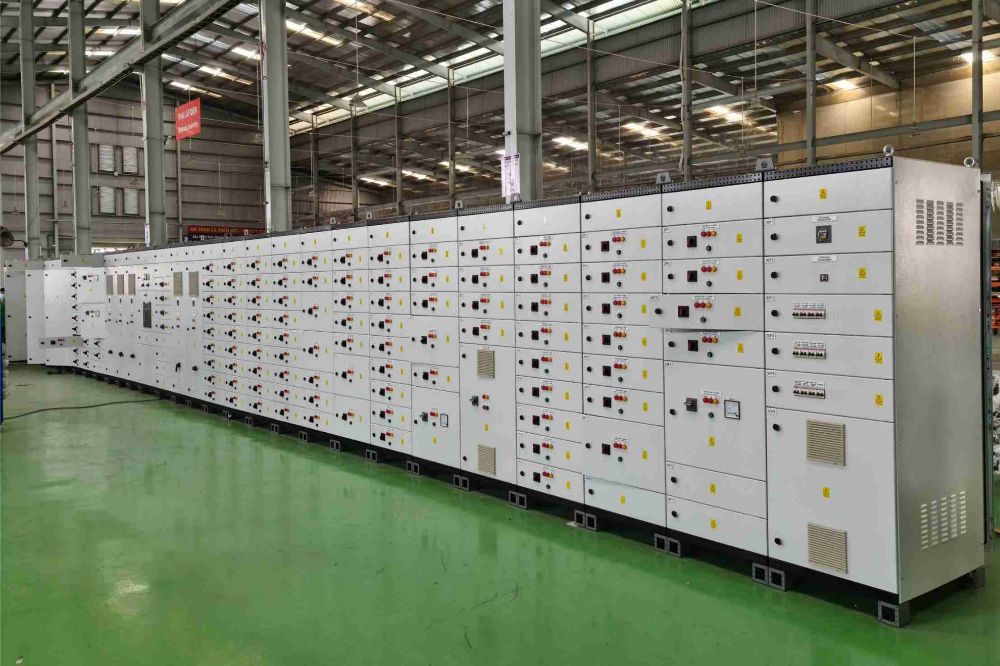

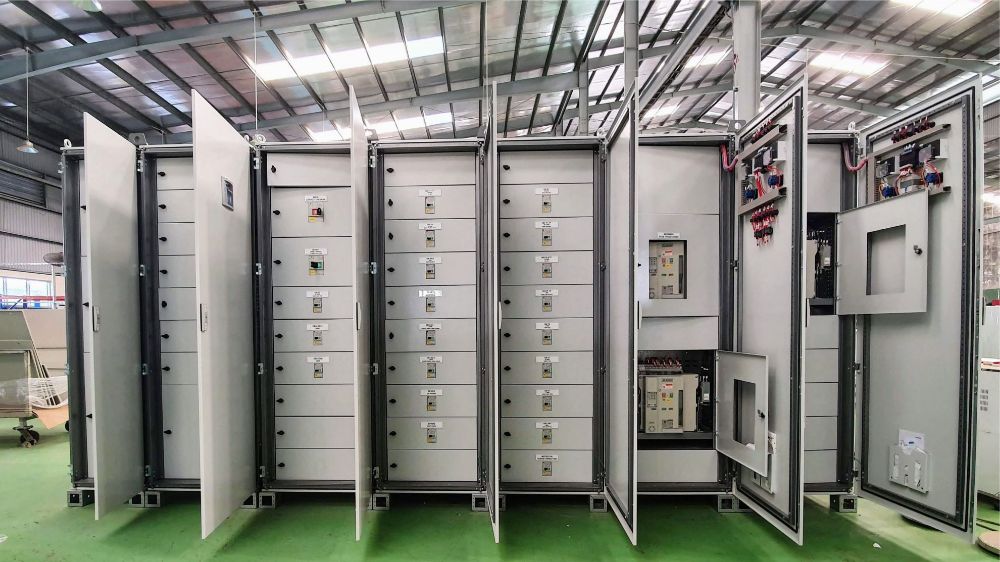

Low voltage switchboards

MEM Switchboards are MEE's solution for main distribution switchboards with a rated current up to 6300A and a short-circuit current up to 120kA. The MEM series switchboard is ideal for secondary distribution switchgear with molded-case circuit-breakers and modular circuit-breakers. The MEMD series of modular switchboards is suitable for floor-mounted installation. MEM structures allow for lots of switchboard configurations while still guaranteeing flexibility and mechanical strength.

 Main characteristics

- Standard:   In compliance with the Standard IEC 61439-1-2.

- Rated service voltage Ue:   up to 1000V AC - 1500V DC.

- Rated insulation voltage Ui:   up to 1000V AC - 1500V DC.

- Rated impulse withstand voltage Uimp:  12kV.

- Rated current In:  up to 6300A.

- Rated short-time withstand current Icw:  up to 120kA.

- Rated frequency:  50-60 Hz.

- Segregation Form:  up to form 4b.

- IP protection class:  IP30, IP31, IP40, IP41, IP43, IP54.

- Material:  Mild Steel; Galvanized Steel; Ecogal; Aluminum; Stainless Steel.

- Finish:  Standard color RAL 7035, other colors available on request.

- Overall dimensions:

  • Height (mm):  1400, 1600, 1700, 1800, 1900, 2000, 2100, 2200.
  • Width (mm):  300, 400, 500, 600, 700, 800, 900, 1000, 1200.
  • Depth (mm):  400, 500, 600, 700, 800, 900, 1000, 1200.
