Motor control center MCC

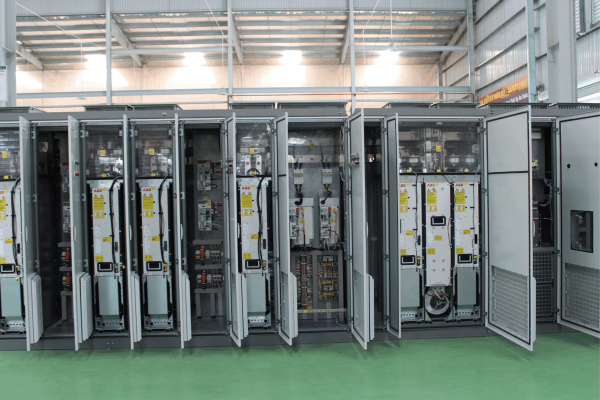

The Motor Control Centre MCC with up to 4000A rated horizontal busbar and 1600A rated vertical busbar. The high horizontal busbar rating also allows the MEE to be used in a switchgear application. Designed for the highest degree of safety, ease of installation and maintenance, reliability, and flexibility, the MCC provides users with the maximum uptime. The MCC provides industry-leading features that guarantee operators the highest degree of safety and efficiency while performing both normal and maintenance operations.

Main characteristics

- Standard:   In compliance with the Standard IEC 61439-1-2.

- Rated service voltage Ue:   up to 690V.

- Rated insulation voltage Ui:   up to 1000V.

- Rated impulse withstand voltage Uimp:  8kV.

- Rated current In:  up to 4000A.

- Rated short-time withstand current Icw:  up to 65kA.

- Rated frequency:  50-60 Hz.

- Segregation Form:  up to form 4b.

- IP protection class:  IP30, IP31, IP40, IP41, IP43, IP54.

- Material:  Mild Steel; Galvanized Steel; Ecogal; Aluminum; Stainless Steel.

- Finish:  Standard color RAL 7035, other colors available on request.

- Overall dimensions:

  • Height (mm):  1400, 1600, 1700, 1800, 1900, 2000, 2100, 2200.
  • Width (mm):  300, 400, 500, 600, 700, 800, 900, 1000, 1200.
  • Depth (mm):  400, 500, 600, 700, 800, 900, 1000, 1200.
