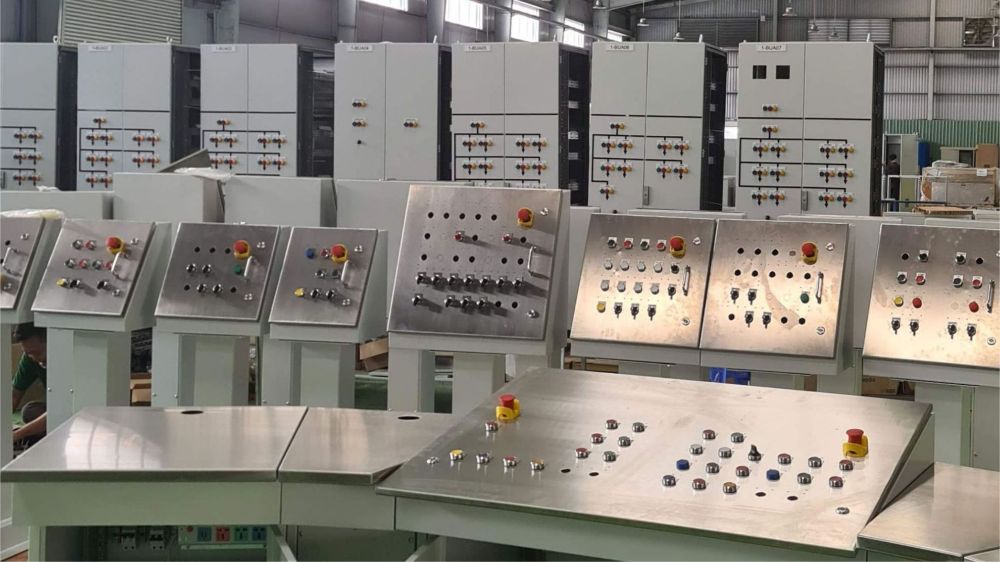

Cabinets for automation

MEE offers cabinets for automation with the MEI series. The MEI series products consist of modular floor-mounted cabinets. The MEI panel boards are suitable for making electrical automation, control, and operation panel boards with the possibility of installing multiple cabinets side-by-side to control complex industrial plants. They are suitable for floor-mounting as their structure allows for lateral and rear access and adjustment of the back-plate position.

Main characteristics

- Standard:   In compliance with the Standard IEC 61439-1-2.

- Rated service voltage Ue:   up to  690V.

- Rated insulation voltage Ui:   up to 1000V.

- Rated impulse withstand voltage Uimp:  8kV.

- Rated current In:  up to 1600A.

- Rated short-time withstand current Icw:  up to 65kA.

- Rated frequency:  50-60 Hz.

- Segregation Form:  up to form 4b.

- IP protection class:  IP30, IP31, IP40, IP41, IP43, IP55, IP65

- Material:  Mild Steel; Galvanized Steel; Ecogal; Aluminum; Stainless Steel.

- Finish:  Standard color RAL 7035, other colors available on request.

- Overall dimensions:

  • Height (mm):  1400, 1600, 1700, 1800, 1900, 2000, 2100, 2200.
  • Width (mm):  400, 500, 600, 700, 800, 900, 1000.
  • Depth (mm):  400, 500, 600, 700, 800, 900, 1000.
